Orifice Plates

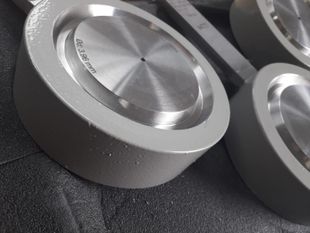

Orifice Plates are available in two main types, Universal and "Paddle"- type.
Paddle - type are mostly used in between the flange fittings, like the orifice flange assemblies.
Most plates are concentric design, but others are available for specialised flow conditions.

  • Specification

    ISO 5167-2

    ISO TR 15733

    AGA Report Nr.3

    ASME MFC-3M

  • Features

    Proven Technology

    Flow Measurement in circular pipes

    No moving parts

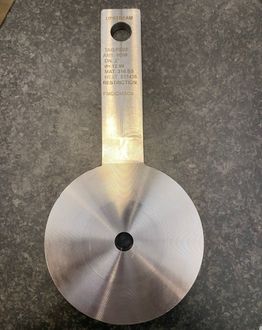

Restriction Orifice Plates and Multistage Spools

Restriction devices are designed primarily for gas pressure reduction (let-down) operations, either as part of continuous process or for periodic and/or intermittent pressure relief "blow down" operations (e.g. venting pressurised gas storage vessel tanks).


If the pressure reduction is to be part of a continuous process, and the required pressure drop is too high for a single orifice plate, a special spool piece fitting can be used, incorporating several orifice plates, each at a prescribed distance from the next.

  • Specification

    R.W. Miller

    FMC Standard Design

    ASME B31.3

  • Features

    Proven Technology

    Prevent Critical Flow and Cavitation issues

    Reduce Site Restriction and Noise Level

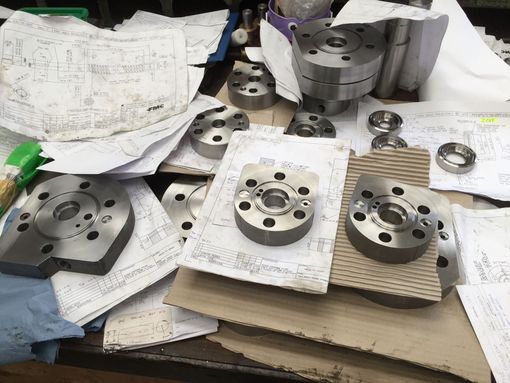

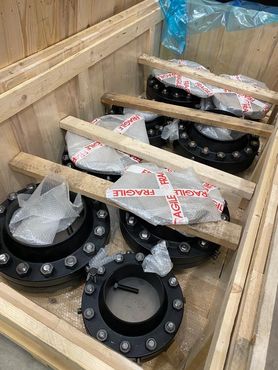

Orifice Flange Unions

The Orifice Flange Union is a precision component designed for flow measurement and pressure drop monitoring in pipelines. Combining the functionality of an orifice plate holder and flange, it ensures accurate flow readings and leak-proof sealing, making it ideal for industries such as oil & gas, chemical processing, and water treatment.

  • Specification

    ASME B16.36

  • Features

    Accurate flow and pressure measurement

    Durable, high-strength materials (stainless steel, carbon steel)

    Easy installation and maintenance

    Leak-proof sealing

    Compatible with various pipe sizes

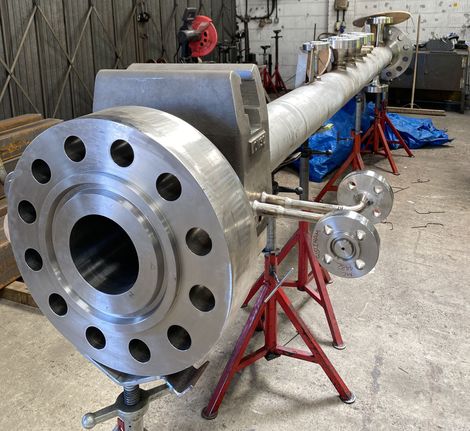

Meter Tubes

FMC provides adequate upstream and downstream pipe lengths required to achieve optimum flow profile.
The lengths are determined by AGA 3 or ISO 5167 - normally 17D Upstream (AGA 3) and 18D (ISO 5167) and 5D Downstream for Orifice meters.

Meter Tubes can be supplied with Flow Straightener (Accessories) and CPA Flow Profiler.
Different configurations apply depending on location of tees, elbows, bends, valves elsewhere in upstream piping.
Flow Conditioners can be used to improve flow profile in difficult or more complex piping configurations.

  • Specification

    ISO 5167-2

    AGA 3

  • Features

    Accurate Measurement: Ensures precise fluid flow readings for system optimization.

    Durable Construction: Built from high-quality, corrosion-resistant materials.

    Versatile Design: Ideal for various applications like gas, water, and oil flow.

    Easy Installation: Quick setup with minimal downtime.

    Customizable Options: Available in different sizes and materials.

    Reliable Sealing: Prevents leaks and ensures accurate measurement.

    Low Maintenance: Designed for minimal upkeep and long-lasting performance.

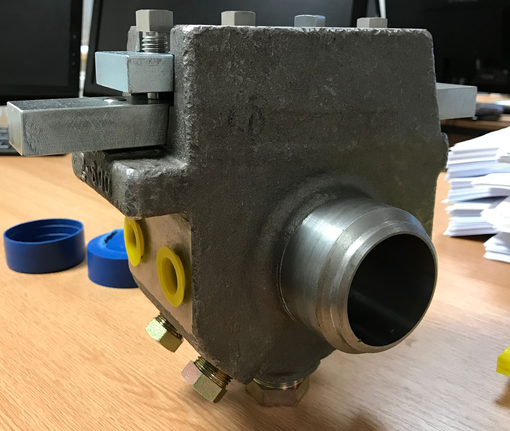

Single Chamber Orifice Meters

The OrificeMaster meter houses and accurately positions the orifice plate for differential pressure measurement.
The fittings allow for fast and efficient removal and replacement of the orifice plate without physically removing the meter from the line.
The OrificeMaster utilizes the '590' Integral Plate which is impossible to locate the wrong way to the flow direction.

  • Specification

    ISO 5167-2

    AGA 3

  • Features

    The OrificeMaster meter houses and accurately positions the orifice plate for differential pressure measurement.

    The fittings allow for fast and efficient removal and replacement of the orifice plate without physically removing the meter from the line.

    The OrificeMaster utilizes the '590' Integral Plate which is impossible to locate the wrong way to the flow direction.


    Horizontal and Vertical installation

    No need to split pipeline flanges to inspect the plate

    Accurate installation and position of the plate

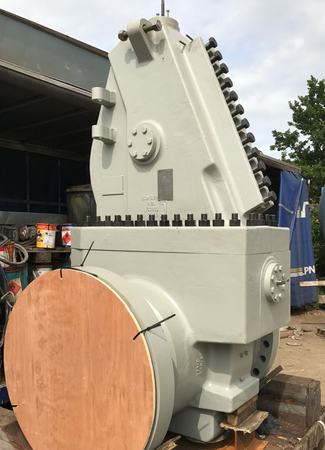

Dual Chamber Orifice Meters

For use in applications where it is difficult, undesirable or impossible to shut down flow in the pipeline. By incorporating its own isolation valve and pressure chamber, flow can be maintained even when the Orifice Plate is removed for inspection. Side mounted withdrawal of the plate simplifies this activity. The fittings allow for fast and efficient removal and replacement of the orifice plate without physically removing the meter from the line.

  • Specification

    ISO 5167-2

    AGA 3

  • Features

    For use in applications where it is difficult, undesirable or impossible to shut down flow in the pipeline. By incorporating its own isolation valve and pressure chamber, flow can be maintained even when the Orifice Plate is removed for inspection. Side mounted withdrawal of the plate simplifies this activity. The fittings allow for fast and efficient removal and replacement of the orifice plate without physically removing the meter from the line.


    Proven Technology

    No need to shutdown the line

    Ease of Operation


Spare Parts and Service Work

Full spares availability for all new and existing Orifice Flow Meters with the ability to conduct service work on site.
